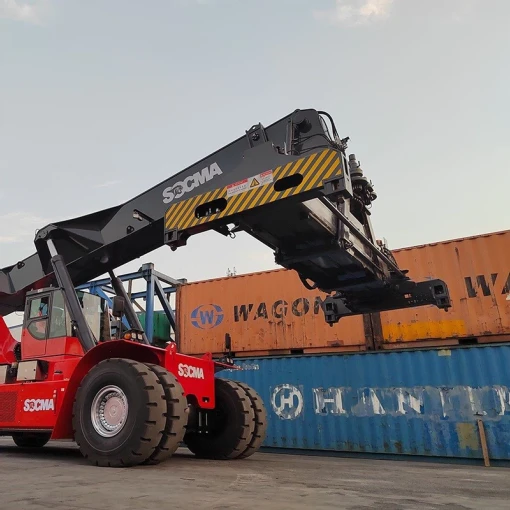

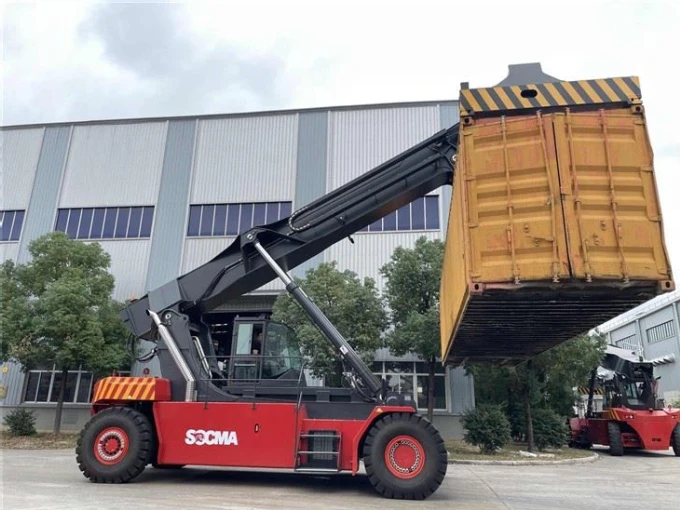

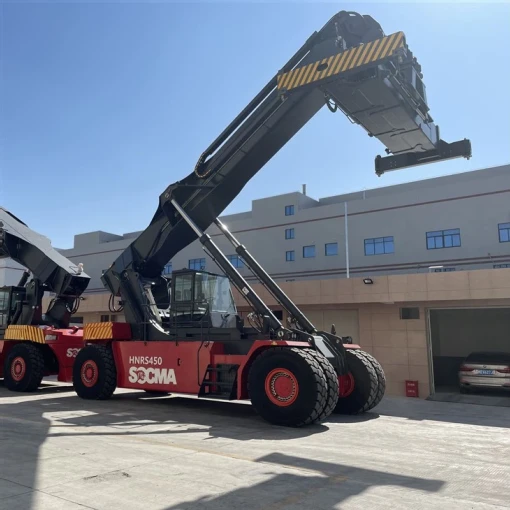

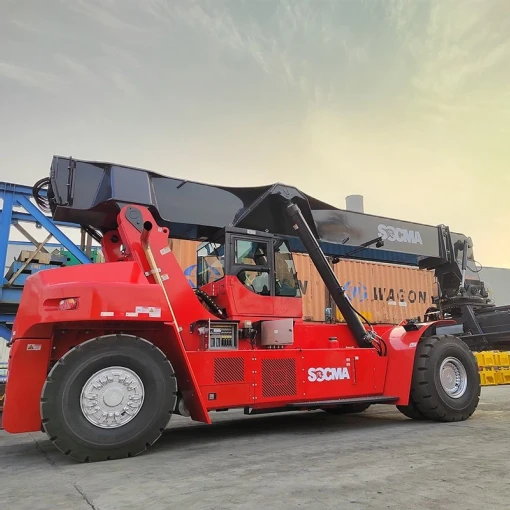

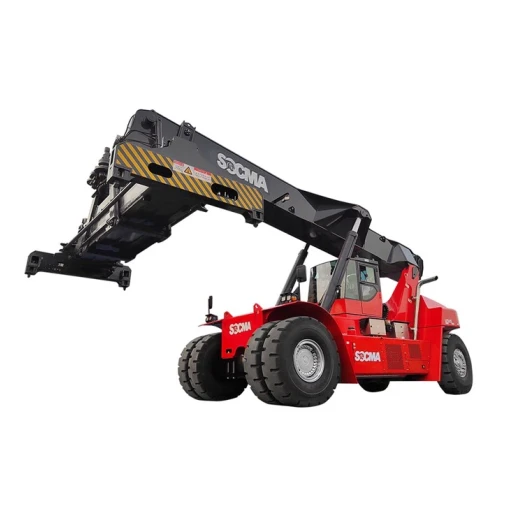

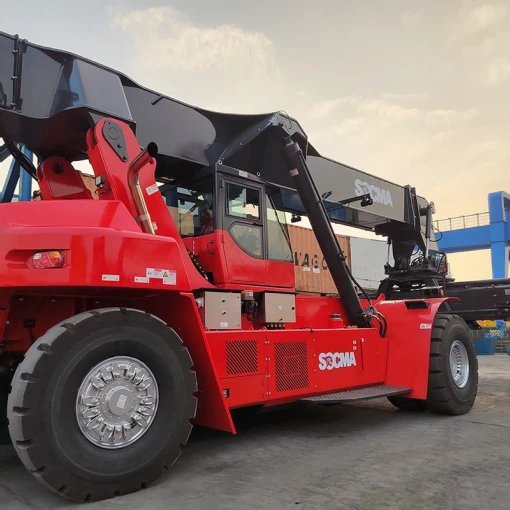

Socma HNRS1009 Reachstacker – 45T lifting capacity

The HNRS1009 is a 45 ton diesel-powered reachstacker designed for container handling in terminals and heavy-duty industrial environments. Fitted with a ZDJ100 spreader and a robust Cummins engine, this machine combines compact dimensions with powerful lifting performance.

Engineered for demanding port operations

With a lifting capacity of 45 tons and a boom angle range of 0–56°, the HNRS1009 is suitable for handling loaded containers in tight port spaces. The integrated load sensing hydraulics system ensures precise and stable container stacking. The spreader can extend up to 16200mm, while the hydraulic pressure reaches 260 bar.

Compact size, high performance

Despite its lifting power, the machine remains relatively compact: max length 11031mm, height 4041mm, and turning radius of just 6753mm. This makes it well-suited for terminals requiring strong performance in limited space. Fuel consumption is efficient at 12L–14L/h.

Key specifications

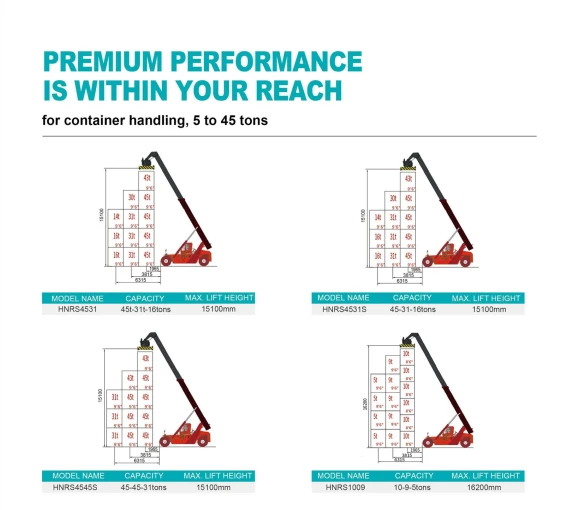

• Lifting capacity: 45T (max) – 10T/9T/5T step loading
• Spreader type: ZDJ100 – 4T
• Engine: Cummins diesel engine
• Transmission: Dana
• Lifting speed: 450/400 mm/s
• Drive speed: 28/25 km/h
• Turning radius (inner): 6753mm
• Tyres: 14-24X28PR

This 45-ton reach stacker is suitable for terminals and technical operators looking for reliable performance, maneuverability, and lower fuel usage during daily operations.
